    47 - 63 Hz Desktop Power Supply Unit , Universal Power Supply For Desktop Computer

    Ask Lasest Price
    Brand Name : OEM
    Model Number : RPD450-60ETN
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : Negotiable
    Delivery Time : Negotiable
    • Product Details
    • Company Profile

    47 - 63 Hz Desktop Power Supply Unit , Universal Power Supply For Desktop Computer

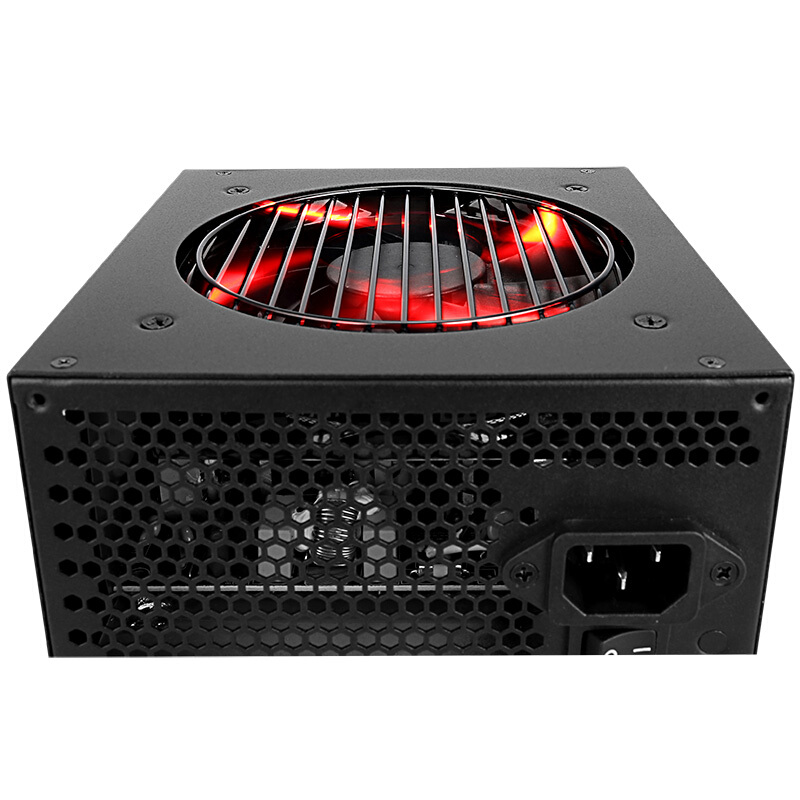

    80 PLUS power supply 460W Desktop PSU RPD450-60ETN



    The Product Features

    • Worldwide Input Voltage 100Vac-240Vac
    • Active PFC Within 0.99 Power Factor Correction
    • Dual 12V Rails To Fulfill System Protection Demand
    • Own Patent IC To Offer High Performance And Efficiency
    • 12cm Fan Provide Ultra Silent User Environment

    PC PSU Introduction

    • Dimension 140 (L) x 150 (W) x 86 (H) mm
    • Output Wattage 450W
    • Efficiency 90% 92% 89%


    The PC PSU DESCRIPTION

    This specification describes a 450 watts power supply. With 7 output, and remote ON/OFF control for ATX-12V system and a “Power factor correction (active PFC)” circuit at 100V-240Vac.


    APPLICATION: Desktop

    WATTAGE: 450W

    DIMENSION : 140mm(L) x 150mm(W) x 86mm(H)


    PRODUCT HIGHLIGHT

    • Efficiency Level: 80 PLUS Platinum
    • Erp Lot: <0.5W
    • Input Voltage: 100~240Vac

    INPUT SPECIFICATION

    • Input Range: 100-240 Vac
    • Input Frequency: 47-63 Hz
    • Input Current: 6 .3Amp (maximum) at 100- 127Vrms/ 60 Hz 3Amp (maximum) at 200-240 Vrms/ 50 Hz.

    OUTPUT SPECIFICATION

    Output Rise Time:


    • +3.3V 20mS (maximum)
    • +5V 20mS (maximum)
    • +12V 20mS (maximum)
    • -12V 20mS (maximum)



    GENERAL SPECIFICATION


    • Efficiency: 90%@ 20% load; 92%@ 50% load; 89%@ 100% load
    • PWOK Delay Time: 500ms > PWOK > 100ms
    • EMC Performance: EN55022 class B

    ​ENVIRONMENTAL SPECIFICATION


    • TEMP.Range: Storage Temperature: -20°C to + 70℃
    • Operating Temperature:10°C to+40°C

    • MTBF:The power supply reliability, when calculated by “Bellcore” latest revision are exceed 100,000 hours with all output at maximum load and an ambient temperature of 25℃.


    Output Voltage and Current Rating

    +3.3V+5V+12V1+12V2-12V+5Vsb
    Ripple-Noise(R-P) mV50mV50mV50mV120mV200mV50mV
    Regulation Load %±5%±5%±5%±5%±10%±5%
    Output Max.(A)16A16A18A18A0.3A3A
    Output Min.(A)0.1A0.2A0.1A0A0A0A



    NOTES

    • +3.3V & +5V total output not exceed 85W.
    • When +5V is load to 16A, the +3.3V maximum load is 1.5A.
    • When +3.3V is load to 16A, the +5V maximum load is 6.5A.
    • +12V1 & +12V2 total output not exceed 408W(34A).

    This content is subject to change, please refer to specification for more detail.
