Product Specification

1) Support: Bluetooth, TF card,USB, FM Radio,Line in
2) Hidden LCD display: play time, Line in, FM radio, charging Status, Bluetooth status and so on;
3) Bluetooth remote control 15-25M
4) It can support music formats: MP3, WMA,WAV, PE,FLAC
5) High sensitivity FM radio with internal antenna.
6) Material: ABS
7) Built-in Li rechargeable external battery 2000mAH
8) Battery can support play time: 4-12 hours;

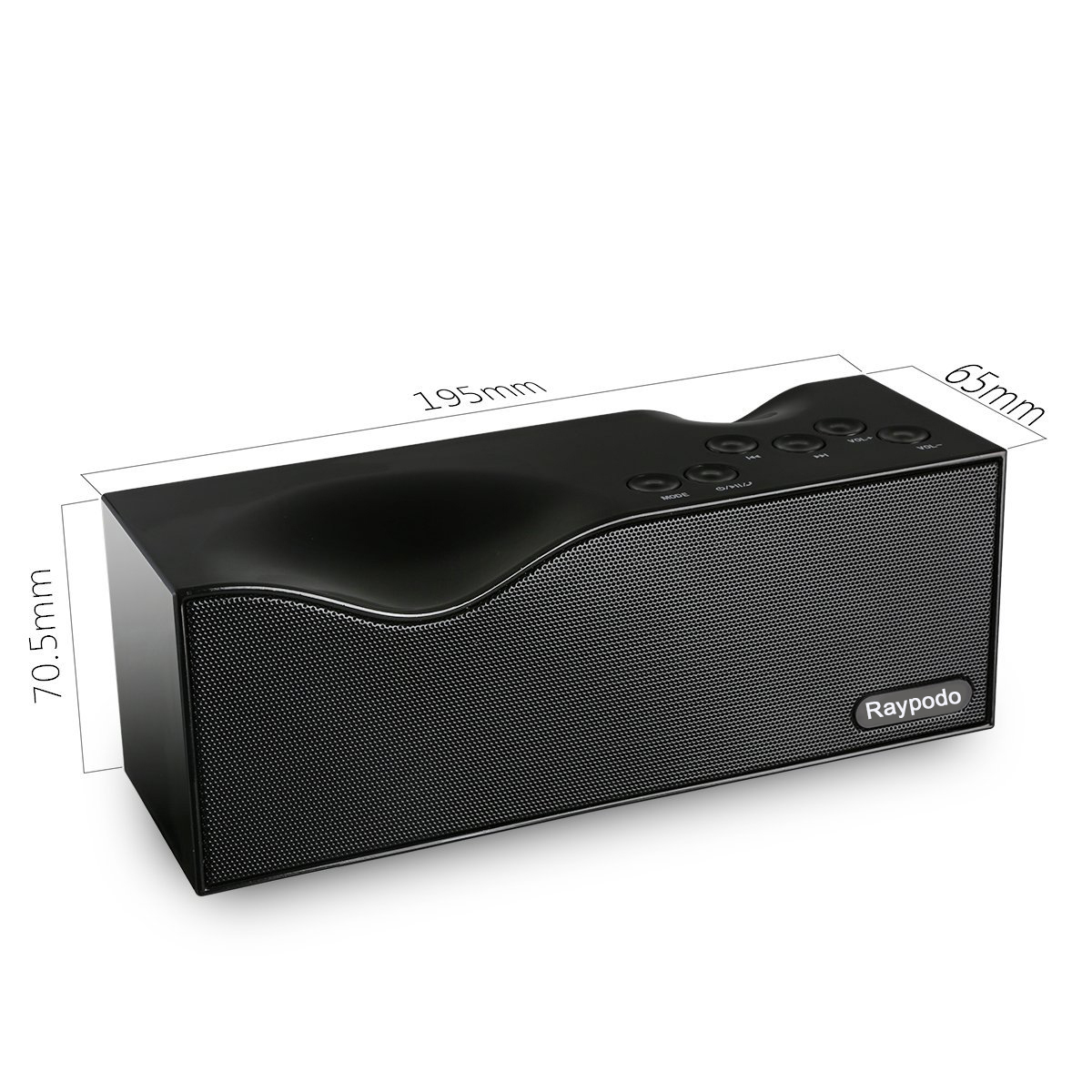

9) Speaker size: 195 x65x 70.5mm
10) Four Colors: Black, White,Blue,Red
11) Support Hand-free when answer calling (with MIC)
12) Support call back the last calling number

Technical Data:

Output/RMS: 5*2 W
Impedance:4Ohm
External USB 5V supply
Frequency response: 80Hz-20KHz
Support: MP3, WMA,WAV, APE,FLAC format music
18650 Battery: 2000mA enough
Distortion: 0.3%
Speaker: Φ52mm 4Ω 5W*2

Accessories:

1xUSB cable
1xAudio line
1xUser manual

Packaging Detail:

Features:

1.Support wireless control through wirelss device
2.Support plug and play for Micro SD card/TF card and USB
3.3.5mm line-in jack for wired devices
4.Built-in Microphone for phone Calls
5.Support MP3,WAV,WMA,FLAC format

Before use

Make sure battery has full power before use,or insert DC 5V power as an external power supply equipment.
Input ChargingWith the speaker turned off,connect the DC 5V/2A connector of the charging cable to the DC input socket at the rear side of the speaker,and plug the adapter into the power supply socket

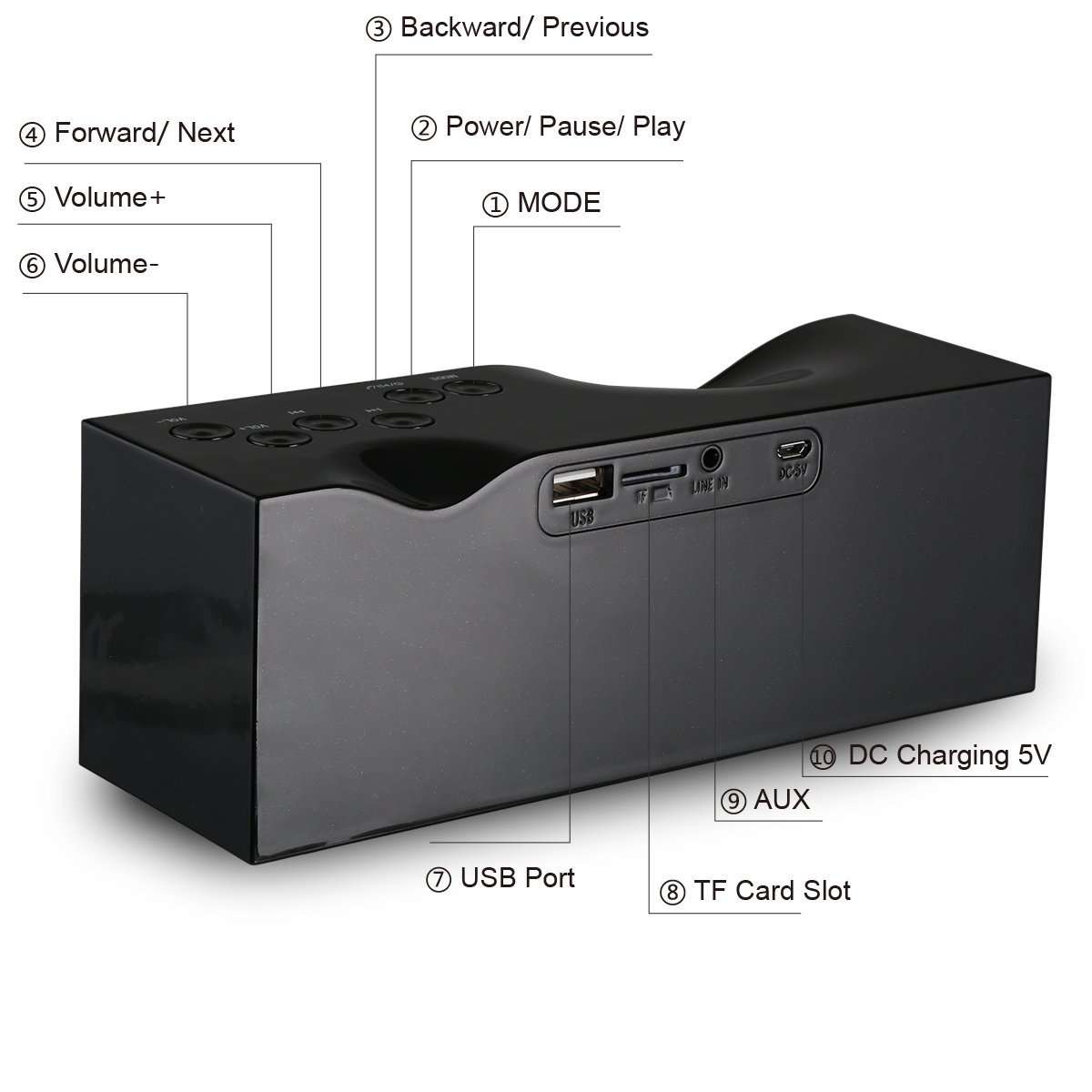

Operating Instructions:

1.Bluetooth
a)Turn on the speaker and choose Bluetooth mode, then access the Bluetooth functionality on vour device(such as mobile phone,laptop,PDAetc); Search for the device F5,select and pair your device.

b)When the phone is connected with Bluetooth, press“)”button to answer phone calls;press“y" button and hold for 2 seconds can refuse the phone calls；double press4)”button can redial the last incoming call
c)When listening to music,press“</>”buttons to adjust the music song,press“+/-"buttons to adjust the volume
Note:In order to ensure the quality of the call, please speak in the direction on the built in microphone(MIC)
Micro SD Card/USB The speaker supp Cad AGSEUGNPBOU5S PWg aRA play for Micro SD into the speaker's card slot/UsEB oor gArd/USB speaker willplay the music flgs prt and the automatically.

AUX
Insert the 3.5mm audio cable into the speaker and ineSrtthe other side into your phone/iPad,iPods or laptop computer
Nots:
1.Machine may work abnormally due to wrong operation or low power,please do the charging
and then turn on again
2.If not pair,speaker will power off in 20minutes.
3.Due to the 2.4G radio interference,if the speaker can not pair or play music well,please turn on the
speaker again or reconnected the Bluetooth device again.

Warming:

1.Do not use the product in high temperature;Always keep the product away from fire.For the sake of your
safety,never throw the product into fire,which may cause explosion and personal injury.
2.Do not use the product close to high-voltage wire or electronic apparatus.Please take proper safety measures when using the product in terrible weather conditions.
3.The product is not designed for use in or near any strong magnetic field,which may cause destructive
damage to the product
