Industrial Android handheld 1D 2D barcode scanner PDA with NFC GPS
camera bluetooth wifi 4g 3g GPRS
Overview
Products Status: Stock | Operation System: Andriod 5.1 | Processor Type: Quad-core CPU(1.3GHz) |
Style:Handheld Computer | Memory Capacity: 2G | Screen Size:4.0 Inch |
Weight:350g | Brand Name:OEM | Model Number:CL7202G3 |
| COO:CN | Color:Black | Product name:Industry PDA |
Communication:GSM/WCDMA/FDD/TDD | WIFI:IEEE802.11 a/b/G/n | GPS:Support A-GPS |
ROM:8G | Bluetooth:Bluetooth 4.0 | Cellular:GSM/WCDMA/LTE |
Colour Depth:Black | Scanning LightSource:LaserLight | Display Resolution:800 *480px |
CL7202G3 rugged Android 5.1 portable data collector PDA with 1D/2D
barcode scanner and RFID reader
Product Specification:
| Features | Powerful | Industrial MT6580 quad-core 1.3GHz CPU |
| Excellent | Max HF RFID /NFC and barcode performance |
| Advanced | Overmodling, capacitive screen, |
| Humanist | Lightweight, big screen, back strap, numeric or qwerty keypad |
| Nice-looking | Refined appearance design for business applications |
| Almighty | Apply to kinds of data collection demands |
| Specification | Model No. | CL7202G3 |
| Operation System | Android 5.1 OS, Multi-language |
| Capacity | RAM :2GB; ROM: 16GB, Max 32G extensible |
| Display | 4” 480*800 WVGA LCD |
| WIFI | IEEE 802.11 b/g/n |
| Bluetooth | V 4.0 |
| 3G | WCDMA :850/900/1900/2100 MHz |
| GPS | Cold start: within 60seconds, Precision: 10m |
| UHF RFID(optional) | ISO18000-6C/EPC C1 GEN2 |
| USA: 902 MHz-928MHz (FCC part 15) |
| EU: 865-868MHz (ETSI EN 302208) |
| CHN: 920-925MHz(CMII) |
| Reading Distance | 0-2 m |
| Antenna Gain | Built-in 2 dBi |
| HF RFID / NFC(Optional) | ISO14443A/B, ISO15693 |
| Reading Distance | 0-5 cm |
| 1D barcode(Optional) | Code128.EAN-13,EAN-8,Code39,UPC-A,UPC-E, |
| Codaba, China post 25, |
| interleaved 2 of 5,ISBN/ISSN.Code93,etc |
| 2D barcode(Optional) | PDF417, QR Code, Data Matrix, Aztec, Maxi code. |
| LP code, Chinese-sensible code, etc. |
| Camera(Optional) | 8.0mp auto-focused with flash |
| Battery | 3.7V 4000mAh |
| Docking station | RJ45/USB/DC/Battery charger |
| Interface: | USB 2.0 , SD card slot, SIM card slot, PSAM card slot |
| Sealing Level | IP 66 |
Our service:
1. OEM/ODM service.
2. Software customization according to customers’ requirement.
3. One year warranty for main device as well as 7*24 Online or
phone technical support service.
4. Consulting Services help clients evaluate hardware, software and
integrated services.
5. Onsite technical support service if online and phone services
are not accessible.
FAQ:
Q The device won’t turn on.
A First please check if battery is installed correctly and battery
rear cover is covered.
If there is battery and battery is installed correctly ,The program
may be damaged. Please try resetting your device.
If it still doesn’t work, Please contact the service center.
Q The devicecan’t be charged.
A AMake sure the power cable and your device have been properly
connected.
Try to clean the charging terminals. If they still do not work,
your battery life might be finished or it may be a broken battery.
(The battery warranty lasts for 6 months)
Q How do I get the repair service?
A You can send the device via a delivery service to our headquarter
after confirmation.
When sending the package, make sure you pay for the shipping
fee in advance.When the repair is finished, headquarter will cover
the shipping cost.
Q My battery drains very quickly.
A The battery can be drained quickly when the Wi-Fi or Bluetooth is
turned on.If it drains quickly regardless of using the options
above,
please purchase another battery.
Q The device won’t connect GPRS?
A First check if SIM card is installed correctly and wireless
function is opened.
Then make sure the access point is set correctly and SIM card has
enough fee.
If it still doesn’t work , then check SIM card is damaged or not.
Value for Clients
| Values | For system integrator: | Original manufacturer long term support |
| Meet your high-end clients project demands |
| Most cost-efficient/one stop solution |
| ODM/OEM supportable |
| For end user: | Promote 70% inventory speed |
| Save 45% processing cost |
| Avoid 30% articles unused/waste/Stealing |
| Big data push keeping improvement |
| For RFID partner: | Semi-finished modules product available directly |
| Share Market |
| Save 80% R&D cost |
| Save 70% new products arrival time |

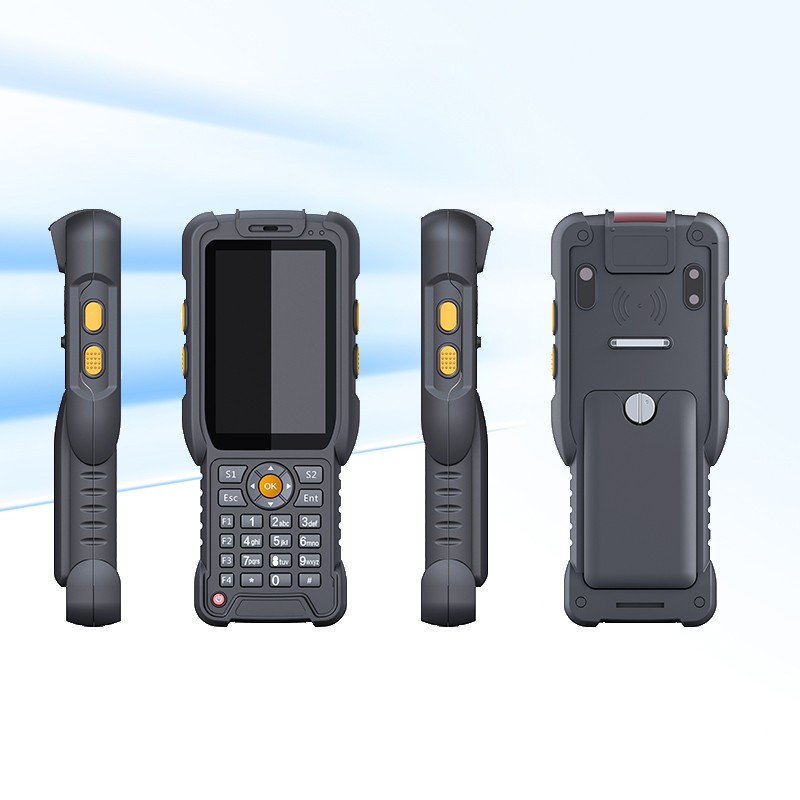

Products Display
