Industrial PDA handheld terminal 4G 2D Barcode Scanner with
Wireless Built in printer PDA Rugge
Overview
Products Status: Stock | Operation System: Andriod 5.1 | Processor Type: ARM Cortex-A53 64bit Quad-core CPU(1.3GHz) |
Style:Handheld Computer | Memory Capacity: 2G | Screen Size:4.0 Inch |
Weight:300g | Brand Name:OEM | Model Number:V8000S |
| COO:CN | Color:Black | Product name:Industry PDA |
Communication:GSM/WCDMA/FDD/TDD | WIFI:IEEE802.11 a/b/G/n | GPS:Support A-GPS |
ROM:16G | Bluetooth:Bluetooth 4.0 | Cellular:GSM/WCDMA/LTE |
Colour Depth:Black | Scanning LightSource:LaserLight | Battery:4000mAh |
Product Specification:
| Physical Parameter |
| Size | 152mm(L)×77mm(H)×29mm(W) |
| Weight | <500g |
| Display Screen | Color 4.0 inch QVGA imitative glass durable touch screen
TFT-LCD, 650000 colors, 480*800 (QVGA size)
The brightness of LED Backlight is adjustable |
| Expand Port | SIM card, , Micro SD (TF) Card |
| Communication Interface | USB2.0 Device, |
| Input Mode | Standard Stylus, Handwriting, touching input or keyboard input |
| Battery Capacity | Rechargeable Li-polymer Battery 3.7V 4000mAh Optional |
| Frequency | 8 1W speaker |
| Key | 21pcs soft silicon key |
| Performance Parameter |
| CPU | ARM Cortex-A53 64bit Quad-Core 1.3G |
| RAM | 2G RAM |
| Flash ROM | Standard 16G NAND Flash Storage
Micro SD/TF port (Max up to 32G) |
| Data Communication |
| WI-FI | Support IEEE802.11b/g/n protocol, it need effective wireless LAN
signal cover |
| FDD-LTE | Uplink: 1920MHZ-1980MHZ; Downlink: 2110MHZ-2170MHZ Uplink: 1710MHZ-1785MHZ; Downlink: 1805MHZ-1880MHZ Uplink: 2496MHZ-2690MHZ; Downlink: 2496MHZ-2690MHZ |
WCDMA /GSM | WCDMA: Uplink:1850MHZ-1910MHZ; Downlink: 1930MHZ-1990MHZ Uplink:880MHZ-915MHZ; Downlink: 925MHZ-960MHZ GSM: 850MHZ, Uplink:824MHZ-849MHZ; Downlink: 869MHZ-894MHZ 900MHZ, Uplink:880MHZ-915MHZ; Downlink: 925MHZ-960MHZ 1800MHZ,Uplink:1710MHZ-1785MHZ; Downlink: 1805MHZ-1880MHZ 1900MHZ ,Uplink:1850MHZ-1910MHZ; Downlink: 1930MHZ-1990MHZ |
| Bluetooth | Support Bluetooth 2.0+EDR/3.0+HS/4.1+HS, transmission distance is
5-10m |
| Operating Environment |
| Operating Temperature | —20C to 50C |
| Storage Temperature | —25C to 70C |
| Environment Humidity | 5%RH--95%RH(no condensation) |
| Drop Specifications | 6 sides can bear impact from 1.5m drop to cement floor in the range
of operating temperature |
| Roll Specifications | 1000 times/0.5m, roll on 6 sides contact area |
| Sealed Environment | IP65 |
| Development Environment |
| Operating System | Android5.1 |
| SDK | exclusive use software development kit |
| Supported Language | JAVA |
| Development Tool | Eclipse |
| A one-dimensional bar code collect |
| One dimensional laser scanner | Symbol 955, HoneywellN4313,Mingde966 |
| Resolution | 4Mil minimum width |
| Ambient Light | 10000ft.candles(107640 lux) |
| Scanning Speed | 104(±)12/sec (bothway) |
| Scanning Angle | 47o±35o(Standard) / 35o±3o(narrow angle) |
| Support Bar Code Type | UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5,
Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS |
| Two-dimensional bar code acquisition |
| CMOS Scanner | HONEYWELL N3680 newland 3096 |
| The Sensor Resolution | 752(level)×480(vertical)pels(gray level) |
| Ambient Light | All dark 9000ft.candles/96900 lux |
| Focus element (VLD) | 655nm ± 10nm |
| Support bar code type | PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code,
Micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet,
UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3 |
| RFID |
| LF | 125K;ISO11784/ISO11785 protocol |
| HF | 13.56MHz;ISO14443A/B protocol |
| Camera | Hd 8 million pixels, with LED, automatic focusing |
| GPS | Support A-GPS |
Packaging & Shipping
Delivery Time: Shipped in 5 days after payment
Accessory: Battery 1 pcs ,USB Data, Cable 1 pcs ,Adapter 1 pcs
Shipping:
1. By Express: We deliver goods by DHL or UPS with door to door
service, normally it will take 5-6 days to delivery
2. By Air : It will take 5-8 days to delivery, customer can pick up
goods from airport by airway bill
3. By Sea: If you want, we can also arrange delivery by sea to main
ports of worldwide from Shenzhen.
delivery time will be 20-40 days accordingly.
Our service:
1. OEM/ODM service.
2. Software customization according to customers’ requirement.
3. One year warranty for main device as well as 7*24 Online or
phone technical support service.
4. Consulting Services help clients evaluate hardware, software and
integrated services.
5. Onsite technical support service if online and phone services
are not accessible.
FAQ:
Q The device won’t turn on.
A First please check if battery is installed correctly and battery
rear cover is covered.
If there is battery and battery is installed correctly ,The program
may be damaged. Please try resetting your device.
If it still doesn’t work, Please contact the service center.
Q The devicecan’t be charged.
A AMake sure the power cable and your device have been properly
connected.
Try to clean the charging terminals. If they still do not work,
your battery life might be finished or it may be a broken battery.
(The battery warranty lasts for 6 months)
Q How do I get the repair service?
A You can send the device via a delivery service to our headquarter
after confirmation.
When sending the package, make sure you pay for the shipping
fee in advance.When the repair is finished, headquarter will cover
the shipping cost.
Q My battery drains very quickly.
A The battery can be drained quickly when the Wi-Fi or Bluetooth is
turned on.If it drains quickly regardless of using the options
above,
please purchase another battery.
Q The device won’t connect GPRS?
A First check if SIM card is installed correctly and wireless
function is opened.
Then make sure the access point is set correctly and SIM card has
enough fee.
If it still doesn’t work , then check SIM card is damaged or not.
Value for Clients
| Values | For system integrator: | Original manufacturer long term support |
| Meet your high-end clients project demands |
| Most cost-efficient/one stop solution |
| ODM/OEM supportable |
| For end user: | Promote 70% inventory speed |
| Save 45% processing cost |
| Avoid 30% articles unused/waste/Stealing |
| Big data push keeping improvement |
| For RFID partner: | Semi-finished modules product available directly |
| Share Market |
| Save 80% R&D cost |
| Save 70% new products arrival time |

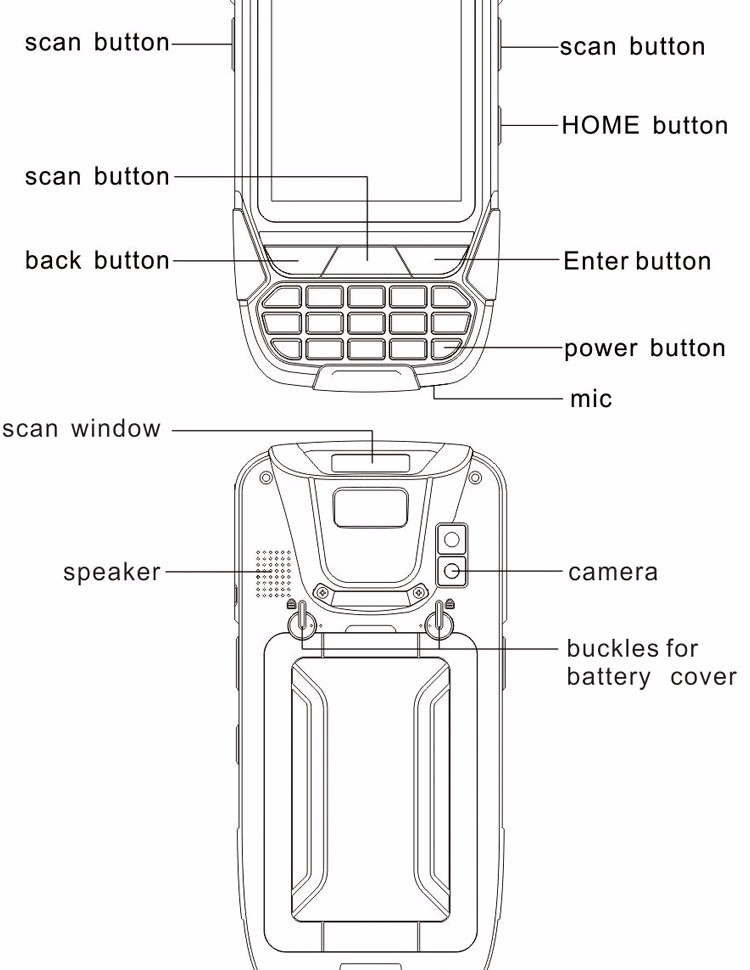

Products Display
