Enterprise Smartphone I6310 Android handheld barcode
scanner.portable scanner QR Code Barcode scanner Data terminal
Overview
Product FeaturesHigh performance
The blazing otca-core 1.4GHz 64-bit processor can run everything
you need to take care of business. And with support Android 7.1 and
4+64GB memory, you get superior user experience and investment
protection.
Highly optimized power system
3.8V, 3800mAh battery ensures long operation hours Pogo pin design
for simple and non-intrusive charging.
Fast data connectivity
802.11 a/b/g/n/ac WiFi 2G/3G/4G Wireless WAN Bluetooth 4.1 BLE
Elegant appearance, Industrial reliability
Stylishness,superior ergonomics for comfort and practical
Durability, reliability and productivity IP65 Sealing 1.5m Drop
tested.
Powerful data collection
2D scan engine
13MP camera get ultra-high resolution photos Accurate location
solutions.
Product Specification:
| CPU | Quad-Core 1.4 Ghz |
| RAM | 2GB |
| ROM | 16GB |
| O.S | Android 7.1 |
| Display | 5.0 inch TFT-LCD (720 x 1280) color screen |
| Dimensions | 158mm x 76.2 mm x 13.3mm |
Weight
Buttons | 210g (Battery included)
Volume up/down,Power button,Custom buttons,Scan
button,Home,Menu.Back |
| Input | Chinese/English.and supports handeriting and soft keyboard |
| Barcode Scanner | 2D imager |
| Main Battery | Rechargeable 3.8V 3800mAhlithium polymer batterry pack(Typical
Operation time >8 hours) |
| RTC Battery | Real time clock battery |
Expansion and peripherals
| Camera | 13MP auto-focus color rear camera with flash 5MP/2MP front-facing
camera |
| RFID | Supports 13.56Mhz, IS014443A&B and I S015693 standard .Supports
NFC |
| GPS | GPS.A-GPS, Bei-Dou satellite navigation system, GLONASS |
| Sensor | Light sensor Range sensor, Acceleration sensor,Compass, Gyroscope,
Barometer |
| Slot | Micro SD/TFX1 .Micro SIM x 2 |
| Interfaces | Type-C USB,3.5mm Audio port,POGO PIN |
| Audio | Loudspeaker, Microphone, Earpiece |
Fingerprint module | Optional |
| Standard | Power adaptor, Data cable, One battery |

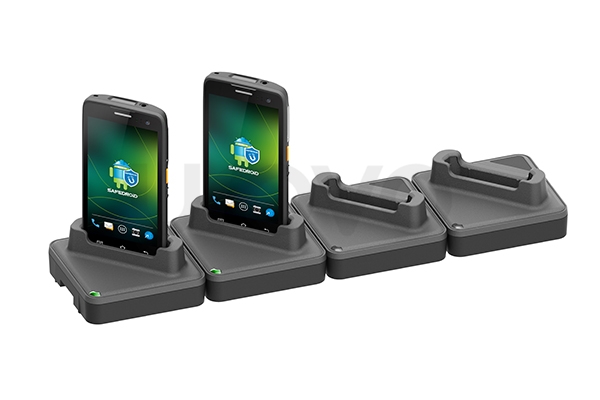

| Optional | Cradle, Scan Trigger Handle with Charger. Case & Hand
strap,Dimensioning Pack |
Radio Communication
| Wi-Fi | 802.11 a/b/g/n/ac |
| Bluetooth | BT4.1 BLE |
America Version
| 4G FDD-LTE(B1/B2/B4/B5/B7/B20/B28A /B28B) 3G WCDMA(B1/B2/B5) 2G GSM/EDGE/GPRS(850,1900MHz) |
| Europe Version | 4G FDD-LTE(B1 /B2/B3/B7/B8/B20/B28A /B28B) 3G WCDMA(B1/B2/B8) 2G GSM/EDGE/GPRS(900,1900MHz) |
User Environment
| Operating Temperature | -10 ~ 50℃(14 ~ 122°F) |
| Storage Temperature | -40 ~ 70℃ (-40 ~ 158°F) |
| Humidity | 5% ~ 95% |
| Drop Durability | 1.5m |
| IP Sealing | 65 |
Our service:
1. OEM/ODM service.
2. Software customization according to customers’ requirement.
3. One year warranty for main device as well as 7*24 Online or
phone technical support service.
4. Consulting Services help clients evaluate hardware, software and
integrated services.
5. Onsite technical support service if online and phone services
are not accessible.
FAQ:
Q The device won’t turn on.
A First please check if battery is installed correctly and battery
rear cover is covered.
If there is battery and battery is installed correctly ,The program
may be damaged. Please try resetting your device.
If it still doesn’t work, Please contact the service center.
Q The devicecan’t be charged.
A AMake sure the power cable and your device have been properly
connected.
Try to clean the charging terminals. If they still do not work,
your battery life might be finished or it may be a broken battery.
(The battery warranty lasts for 6 months)
Q How do I get the repair service?
A You can send the device via a delivery service to our headquarter
after confirmation.
When sending the package, make sure you pay for the shipping
fee in advance.When the repair is finished, headquarter will cover
the shipping cost.
Q My battery drains very quickly.
A The battery can be drained quickly when the Wi-Fi or Bluetooth is
turned on.If it drains quickly regardless of using the options
above,
please purchase another battery.
Q The device won’t connect GPRS?
A First check if SIM card is installed correctly and wireless
function is opened.
Then make sure the access point is set correctly and SIM card has
enough fee.
If it still doesn’t work , then check SIM card is damaged or not.
Products Display
