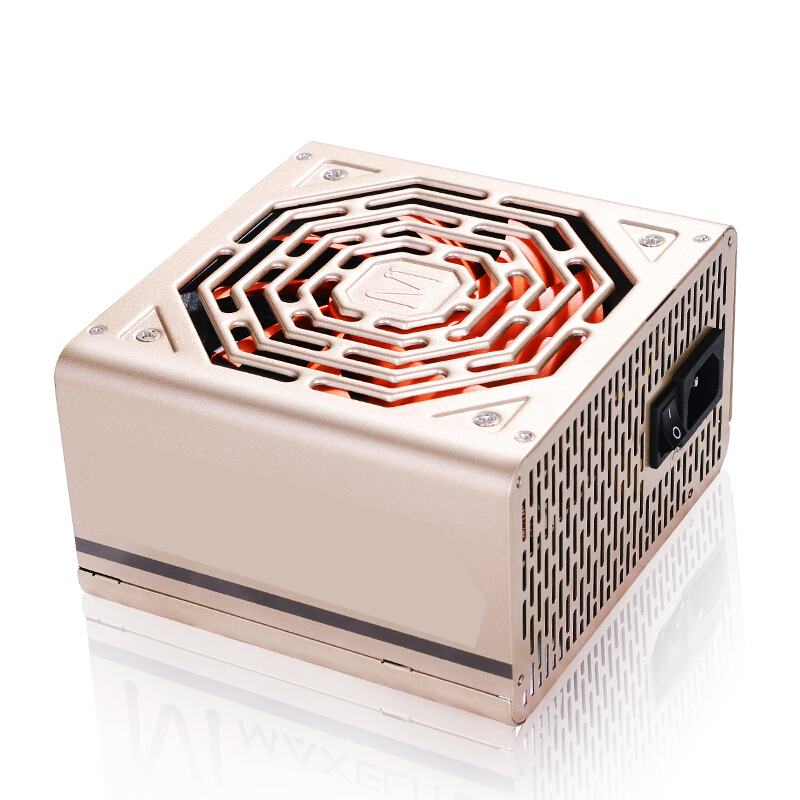

    4.0 Amp Desktop Power Supply High Reliability With 80 Plus Efficiency Level

    Ask Lasest Price
    Brand Name : OEM
    Model Number : RPD550-50ARN
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : Negotiable
    Delivery Time : Negotiable
    • Product Details
    • Company Profile

    4.0 Amp Desktop Power Supply High Reliability With 80 Plus Efficiency Level

    80 PLUS power supply 550w Desktop PSU RPD550-50ARN

    Feature

    • Worldwide Input Voltage 100Vac-240Vac
    • Active PFC Within 0.99 Power Factor Correction
    • Quad 12V Rails To Fulfill System Protection Demand
    • Own Patent IC To Offer High Performance And Efficiency
    • 12cm Fan Provide Ultra Silent User Environment

    PC PSU Introduction

    • Dimension 140 (L) x 150 (W) x 86 (H) mm
    • Output Wattage 550W
    • Efficiency 85% 88% 85%


    The PC PSU DESCRIPTION


    This specification describes a 550 watts power supply. With 5 output, and remote ON/OFF control for ATX-12V system and a “Power factor collection (active PFC)” circuit at 200V- 240Vac.

    APPLICATION: Desktop

    WATTAGE: 550W

    DIMENSION : 140mm(L) x 150mm(W) x 86mm(H)


    PRODUCT HIGHLIGHT

    • Efficiency Level: EU 230V 80Plus Bronze
    • Erp Lot: <0.5W
    • Input Voltage: 100~240Vac

    INPUT SPECIFICATION

    Input Range: 100-240 Vac
    Input Frequency: 47-63 Hz
    Input Current: 230V@ 4.0 Amps-rms maximum


    OUTPUT SPECIFICATION

    Output Rise Time: +3.3V 20mS (maximum)

    +5V 20mS (maximum)

    +12V 20mS (maximum)

    -12V 20mS (maximum)


    GENERAL SPECIFICATION


    • Efficiency:85%@ 20% load; 88%@ 50% load; 85%@ 100% load
    • PWOK Delay Time: 500ms > PWOK > 100ms
    • EMC Performance: EN55022 class B

    ENVIRONMENTAL SPECIFICATION


    • TEMP.Range: Storage Temperature: -20°C to + 70℃
    • MTBF: The power supply reliability, when calculated by “Bellcore” latest revision are exceed 100,000 hours with all output at maximum load and an ambient temperature of 25℃.


    Output Voltage and Current Rating


    +3.3V+5V+12V1+12V2+12V3+12V4-12V+5Vsb
    Ripple-Noise(R-P) mV50mV50mV50mV120mV120mV120mV200mV50mV
    Regulation Load %±5%±5%±5%±5%±5%±5%±10%±5%
    Output Max.(A)16A16A18A18A18A18A0.3A3A
    Output Min.(A)0.1A0.2A0.1A0A0A0A0A0A



    NOTES


    • +3.3V & +5V total output not exceed 135W.
    • When +5V is load to 16A, the +3.3V maximum load is 16.66A.
    • When +3.3V is load to 17A, the +5V maximum load is 15.78A

    This content is subject to change, please refer to specification for more detail.
