Product Specification

Product description:

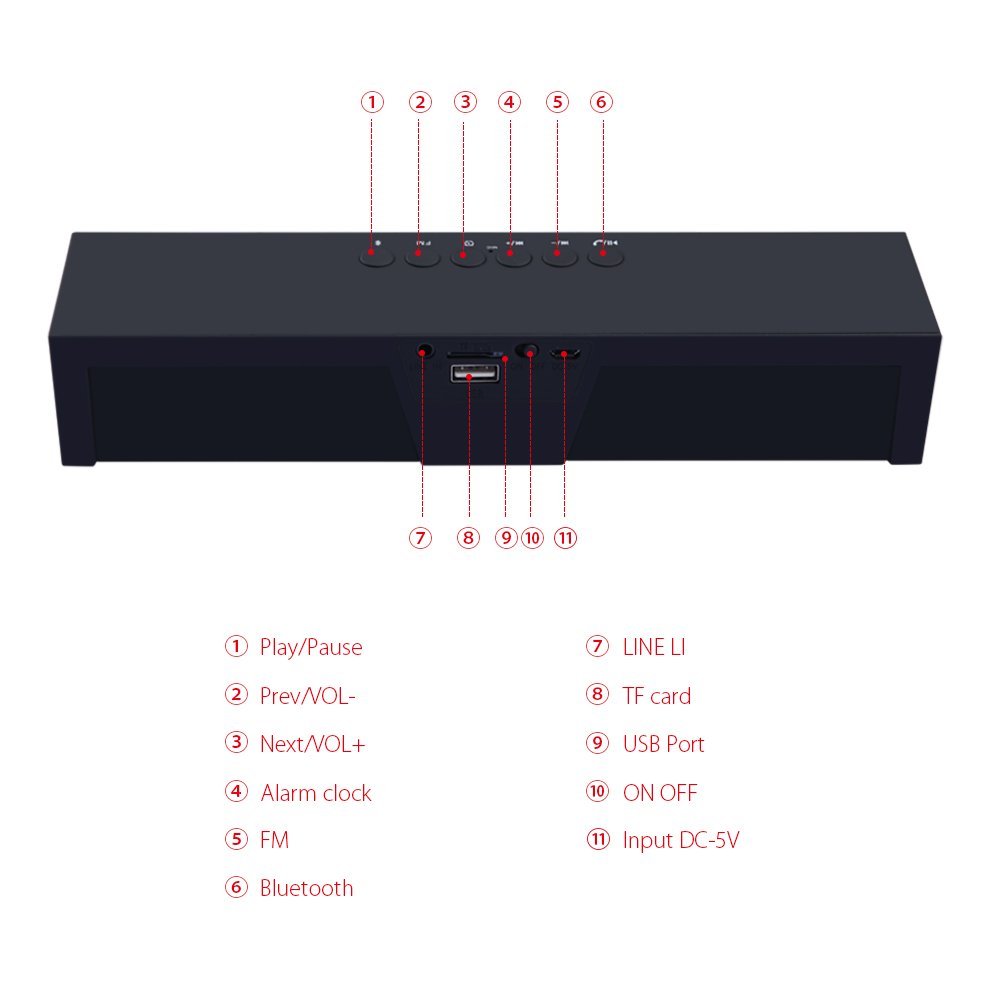

1) Support: Bluetooth, TF card,USB, FM Radio,Line in,Alarm clock
2) LCD display show digital clock, Alarm clock, Line in, FM radio, charging Status, Bluetooth status and so on;
3) Support call back the last calling number
4) Bluetooth control range:15-25M
5) It supports music formats: MP3, WMA,WAV, PE,FLAC
6) High sensitivity FM radio with internal antenna.
7) With alarm clock function in on/off state, you can set the alarm music via USB, TF card.
8) Material: Plastic with rubber oil
9) Built-in Li rechargeable battery 2000mAH
10) Speaker size: 240*55*61.5 MM
11) Five colors: Black, Black + Red, Blue, Red, White
12) Support Hand-free when answer calling (with MIC)
13) Auto Voice reporting when Bluetooth is connected and disconnected
14) Support telephone number reporting function

Technical Data:
Output/RMS: 3W*2
Impedance:3Ohm
SNR ≥90db (line out)
External USB 5V supply
Frequency response: 80Hz-20KHz
Support: MP3, WMA,WAV, APE,FLAC format music
Speaker: Φ45mm 3Ω; 3W*2
Battery: 2000mAh enough
Distortion: 0.3%
JL Bluetooth solution: 2.1+EDR

Accessories:
Output/RMS: 3W*2
Impedance:3Ohm
SNR ≥90db (line out)
External USB 5V supply
Frequency response: 80Hz-20KHz
Support: MP3, WMA,WAV, PE,FLAC format music
Speaker: Φ45mm 3Ω; 3W*2
Battery: 2000mAh enough
Distortion: 0.3%
JL Bluetooth solution

Aceessories:

Packing details:
Unit giftbox: 290*78*66mm
Qty:20pcs/CTN
Gross weight: 14.5kg
Net weight: 14.0kg
CTN size: 41.5*28*31.5CM

Features:

1.Support wireless control through wirelss device
2.Support plug and play for Micro SD card/TF card and USB
3.3.5mm line-in jack for wired devices
4.Built-in Microphone for phone Calls
5.Support MP3,WAV,WMA,FLAC format

Before use

Make sure battery has full power before use,or insert DC 5V power as an external power supply equipment.
Input ChargingWith the speaker turned off,connect the DC 5V/2A connector of the charging cable to the DC input socket at the rear side of the speaker,and plug the adapter into the power supply socket

Operating Instructions:

1.Bluetooth
a)Turn on the speaker and choose Bluetooth mode, then access the Bluetooth functionality on vour device(such as mobile phone,laptop,PDAetc); Search for the device F5,select and pair your device.

b)When the phone is connected with Bluetooth, press“)”button to answer phone calls;press“y" button and hold for 2 seconds can refuse the phone calls；double press4)”button can redial the last incoming call
c)When listening to music,press“</>”buttons to adjust the music song,press“+/-"buttons to adjust the volume
Note:In order to ensure the quality of the call, please speak in the direction on the built in microphone(MIC)
Micro SD Card/USB The speaker supp Cad AGSEUGNPBOU5S PWg aRA play for Micro SD into the speaker's card slot/UsEB oor gArd/USB speaker willplay the music flgs prt and the automatically.

AUX
Insert the 3.5mm audio cable into the speaker and ineSrtthe other side into your phone/iPad,iPods or laptop computer
Nots:
1.Machine may work abnormally due to wrong operation or low power,please do the charging
and then turn on again
2.If not pair,speaker will power off in 20minutes.
3.Due to the 2.4G radio interference,if the speaker can not pair or play music well,please turn on the
speaker again or reconnected the Bluetooth device again.

Warming:

1.Do not use the product in high temperature;Always keep the product away from fire.For the sake of your
safety,never throw the product into fire,which may cause explosion and personal injury.
2.Do not use the product close to high-voltage wire or electronic apparatus.Please take proper safety measures when using the product in terrible weather conditions.
3.The product is not designed for use in or near any strong magnetic field,which may cause destructive
damage to the product
