Product Specification
Product description:
1) Support: Bluetooth, TF card, Line in,TWS, FM radio
2) Support wireless control through wirelss device
3) Material : dacron fabric + ABS with rubber oil
4) When speaker connect with phone, device support announce
incoming phone no and redial the last incoming call
5) Perfect sound: 6W*2
6) Built in 4000mAh battery
7) It can support music formats: MP3, WAV
8) Battery can support play time: 5-12 hours;
9) Speaker size: 205*205*57MM

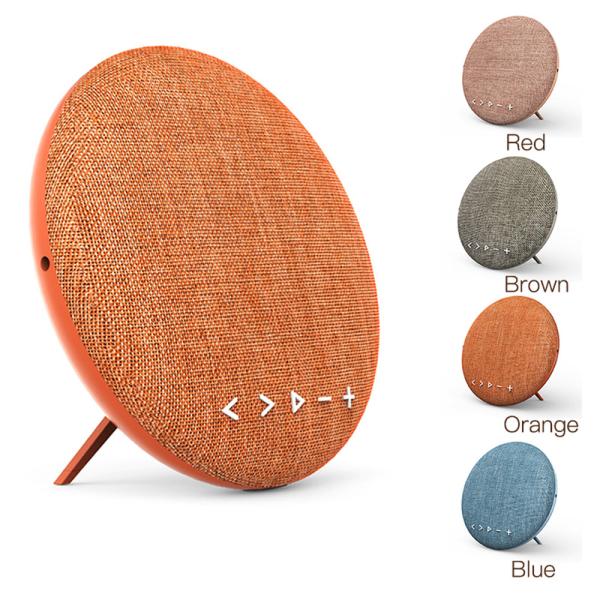

10) Colors: Pink, Orange, Blue, Grey
11) Support Hand-free when answer calling (with MIC)
13) Bluetooth remote control≥15 metres
14) with CE ,RoHS, WEEE,FCC,REACH and BQB certificates
Technical Data:Output/RMS: 6W*2
Impedance:4Ohm
External USB 5V supply
Battery: 4000mAh, 3.7V
Speaker:Φ52mm, 4Ω, 20core, 6W*2
Bluetooth version: JL4.2+EDR
Technical Frequency: 80HZ -18KHZ
Distortion: 0.3%
OEM pattern is available
Accessories and Package:
1pc audio cable
1pc USB charging cable
2pcs screws
1pc PU belt
1pc high-end giftbox
1pc user manual
F6 Net weight: 621g
With giftbox:1006g
F6 size: 205*205*57mm
Giftbox size: 235*235*80mm
10pcs/CTN
Gross Weight: 11.5KG
Net weight: 10.6KG
Carton box size: 480*420*260mm
Features:
1.Support wireless control through wirelss device
2.Support plug and play for Micro SD card/TF card and USB
3.3.5mm line-in jack for wired devices
4.Built-in Microphone for phone Calls
5.Support MP3,WAV,WMA,FLAC format
Before use
Make sure battery has full power before use,or insert DC 5V power
as an external power supply equipment.
Input ChargingWith the speaker turned off,connect the DC 5V/2A
connector of the charging cable to the DC input socket at the rear
side of the speaker,and plug the adapter into the power supply
socket
Operating Instructions:
1.Bluetooth
a)Turn on the speaker and choose Bluetooth mode, then access the
Bluetooth functionality on vour device(such as mobile
phone,laptop,PDAetc); Search for the device F5,select and pair your
device.
b)When the phone is connected with Bluetooth, press“)”button to
answer phone calls;press“y" button and hold for 2 seconds can
refuse the phone calls；double press4)”button can redial the last
incoming call
c)When listening to music,press“</>”buttons to adjust the
music song,press“+/-"buttons to adjust the volume
Note:In order to ensure the quality of the call, please speak in
the direction on the built in microphone(MIC)
Micro SD Card/USB The speaker supp Cad AGSEUGNPBOU5S PWg aRA play
for Micro SD into the speaker's card slot/UsEB oor gArd/USB speaker
willplay the music flgs prt and the automatically.
AUX
Insert the 3.5mm audio cable into the speaker and ineSrtthe other
side into your phone/iPad,iPods or laptop computer
Nots:
1.Machine may work abnormally due to wrong operation or low
power,please do the charging
and then turn on again
2.If not pair,speaker will power off in 20minutes.
3.Due to the 2.4G radio interference,if the speaker can not pair or
play music well,please turn on the
speaker again or reconnected the Bluetooth device again.
Warming:
1.Do not use the product in high temperature;Always keep the
product away from fire.For the sake of your
safety,never throw the product into fire,which may cause explosion
and personal injury.
2.Do not use the product close to high-voltage wire or electronic
apparatus.Please take proper safety measures when using the product
in terrible weather conditions.
3.The product is not designed for use in or near any strong
magnetic field,which may cause destructive
damage to the product
